main feature:

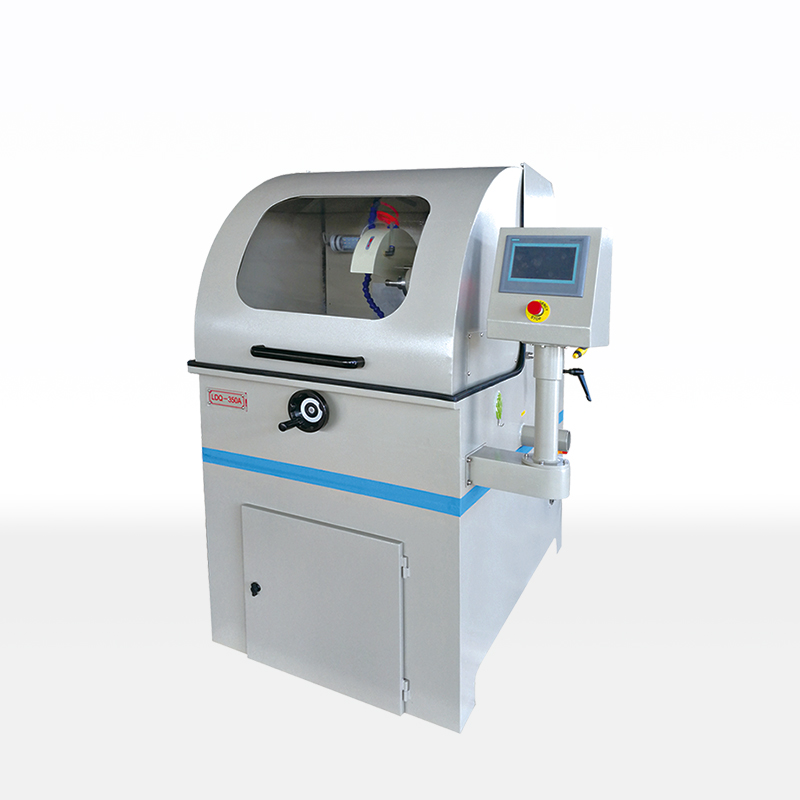

LDQ-350A metallographic sample cutting machine-1 is a metallographic cutting machine with manual and automatic integration. With very high reliability and strong control ability, it is suitable for cutting samples of various metal and non-metal materials, so as to observe the metallographic and petrographic structures of materials. The cutting process of this machine is automatic and manual interchangeable, with low noise, simple operation, safety and reliability. It is one of the important equipment for making solid material samples in the laboratory.
Main technical specifications:
Two cutting modes: hack cut and flat push cut
Y-axis maximum moving distance: 200mm
Y-axis cutting speed: 0.001-1mm/s
Z-axis cutting speed: 0.001-1mm/s
Maximum cutting diameter: φ110mm
Circulating cooling water tank: 80 liters
Grinding wheel specification: φ350x2.5x32mm
Input power: 4.5kW
Input voltage: three-phase 380V50Hz
Dimensions: 1060x1450x1650mm
Weight: 780Kg
Optional parts: circulating cooling water tank with magnetic separator
