main feature:

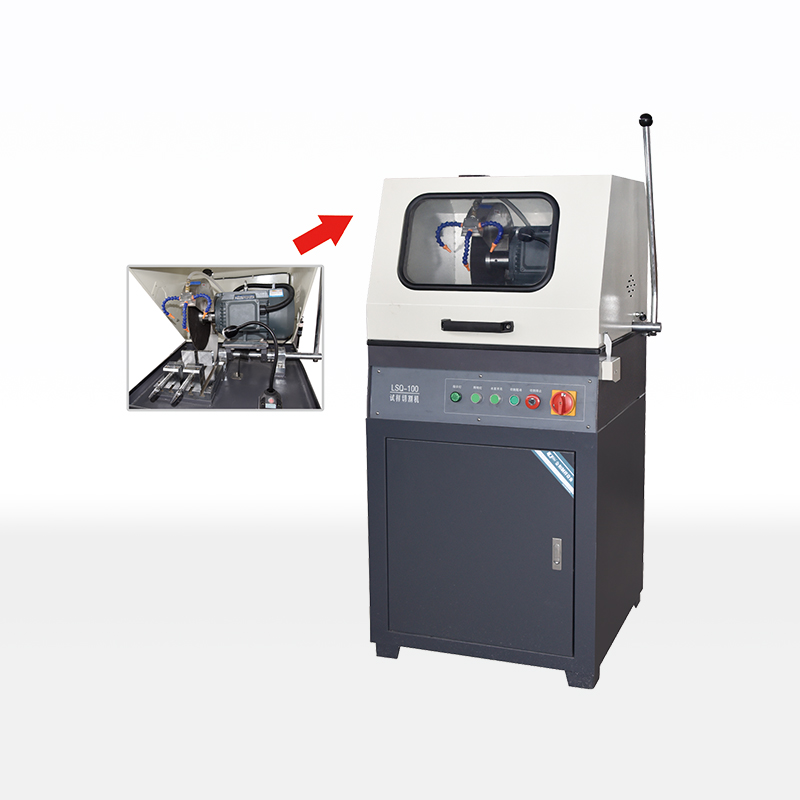

LQ-100B manual automatic cutting machine is composed of body, electric control box, cutting chamber, motor, cooling system, cutting grinding wheel and other components. This cutting machine can not only cut circular workpieces with a diameter of less than 80mm, but also cut rectangular samples with a height of 800mm and a depth of 200mm. The machine cools the sample through the cooling system to prevent the sample from overheating and burning the tissue during the cutting process. This machine can also set the cutting speed according to cutting different samples, so as to improve the quality of cutting samples. The machine is divided into manual and automatic cutting. The large-volume cutting chamber is more convenient for cutters to use, and it is one of the necessary sample equipment for metallographic experiments in universities, colleges and factories.
Main technical specifications:
Three-phase four-wire 380V50Hz; Spindle speed: 2200r/min;
Cutting sheet specification: φ350*2.5*φ32mm;
Automatic cutting stroke: 125mm;
The maximum movement of the table: 275mm;
Input power: 3.3kw;
Feed speed: 1-6mm/min;
Workbench size: 310*280mm;
Overall dimensions: 835*850*1620mm;
Net weight: 180kg;
Net weight of water tank: 25kg
