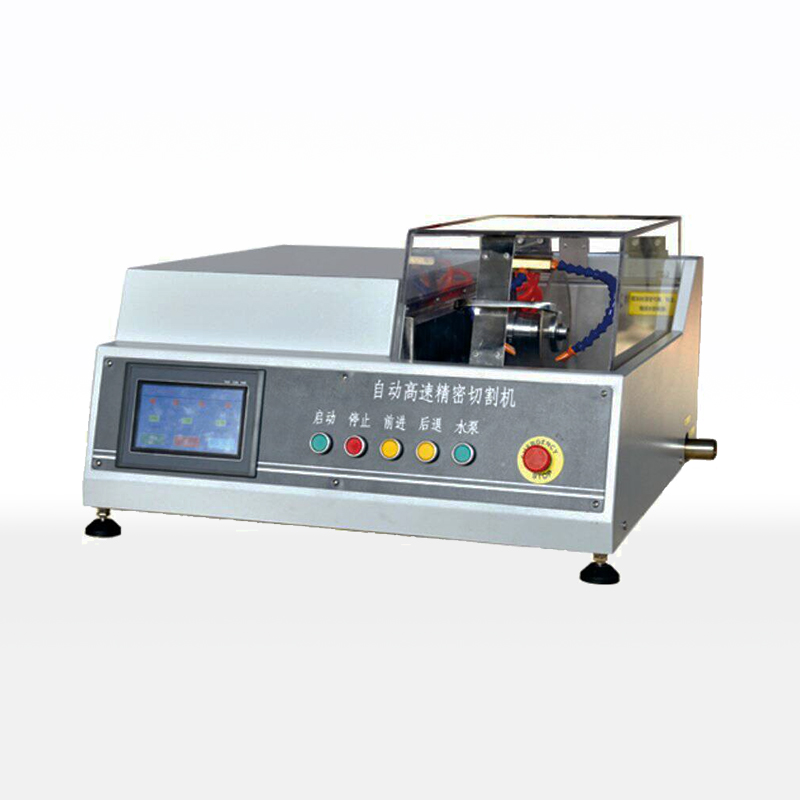

GTQ-5000B precision cutting machine is suitable for precise non-deformation cutting of metals, electronic components, ceramic materials, crystals, hard alloys, rock samples, ore samples, concrete, organic materials, biological materials (teeth, bone) and other materials .
The equipment has high positioning accuracy; large speed range; strong cutting ability; strong circulation cooling system; preset feed speed; touch screen control display, easy to operate and control; automatic cutting can reduce operator fatigue and ensure the accuracy of sample production. Consistency; large and bright cutting room with safety switch, the user can save the set parameters to the user parameter interface, and the user can save the parameters for cutting different materials, and does not need to reset the parameters every time. It is one of the ideal equipments for industrial and mining enterprises and scientific research institutes to prepare high-quality samples. It is one of the ideal equipments for industrial and mining enterprises and scientific research institutes to prepare high-quality samples.
two. Main Specifications
1. Feed speed: 0.01~3mm/s (adjustment step is 0.011mm)
2. Grinding wheel speed: 500~5000rpm
3. Manual feed speed: 0.01~15mm/s
4. Impact cutting back speed: 0.01~15mm/s
5. Impact cutting advance distance: 0-2mm
6. Impact cutting retreat distance: 0-1.99mm
7. Maximum cutting diameter: φ60mm
8. Maximum stroke: 260mm
9. The maximum clamping length of the workbench: 150mm
10. The maximum clamping width of the workbench: 200mm
11. Cutting piece size: 100mm; 125mm; 150mm; 200mm
12. Motor power: 1200W
13. Power supply: 220V 50HZ
14. Configure quick clamps
15. Overall dimensions: 810mm×700mm×430mm (length×width×height)
16. Weight: 130KG
3. Equipped with main accessories
2. A pair of saw blade chuck
3. 1000mL environment-friendly cooling lubricant
