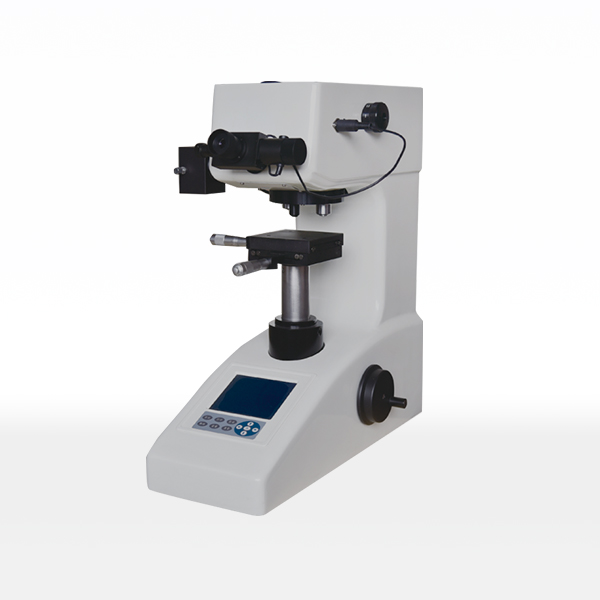

main feature:.
Frictionless spindle, high test force accuracy; high-precision optical measurement system, precise coordinate test bench; automatic test process, simple operation, no human error; optional Knoop indenter for Knoop hardness test; optional CCD camera Device and image processing system; the precision complies with GB/T4340.2 ISO 6507-2 and American ASTM E384.
Applications:
Nitriding layer, ceramics, steel, non-ferrous metal; thin plate, metal sheet, electroplating layer, tiny test piece; depth measurement of carburized layer, decarburized layer and quench hardened layer; suitable for parallel planes and precision of tiny parts and ultra-thin parts Vickers measurement.
Main technical specifications:
Measuring range 5-3000HV
Test force 0.09807,0.2454,0.4904,0.9807,1.961,2.942,4.904,9.807N(10,25,50,100,200,300,500,1000kgf)
Measuring system magnification 400x, 100x
Minimum detection unit 0.5μm
The maximum allowable height of the sample is 90mm
The distance from the center of the indenter to the machine wall is 95mm
Power supply AC220V, 50/60Hz
Dimensions 340*160*378mm
Weight About 40kg
Standard configuration:
Coordinate test bench: 1;
Thin shaft test bench: 1;
Thin plate test bench: 1;
Flat pliers: 1;
Diamond pyramid indenter: 1 piece;
Standard microhardness block: 2 pieces
Printer: 1
Optional configuration:
Knoop indenter;
CCD image processing system
