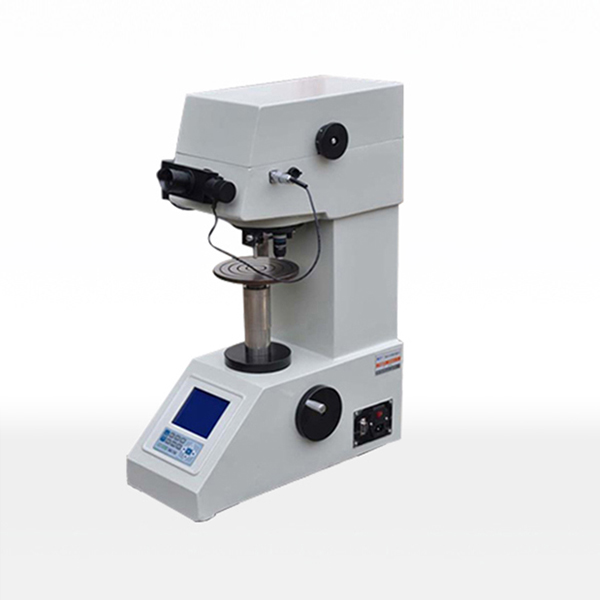

main feature:
Direct loading type Vickers and micro Vickers integrated machine; direct loading of weights, high accuracy of test force;
LCD hardness display, high precision measuring system;
Test force covers microscopic and Vickers test requirements;
The test process is automated, without human error; with RS232 interface;
Optional use of CCD image processing system;
Equipped with precise coordinate test bench, it can measure the depth of hardened layer and hardness trapezoid;
Random printer to print hardness test results;
Accuracy complies with GB/T4340.2 ISO6507-2 and American ASTM E92 standards.
Applications:
Nitriding layer, ceramics, steel, non-ferrous metal; thin plate, metal sheet, electroplating layer, tiny test piece; depth measurement of carburized layer, decarburized layer and quench hardened layer; suitable for parallel planes and precision of tiny parts and ultra-thin parts Whitney's measurement.
Main technical specifications:
Measuring range: 5-3000HV Coordinate test bench division value 0.01mm
Test force: 1.961; 2.942; 4.93; 9.807; 19.61; 25.52; 29.42; 49.03
（0.2; 0.3; 0.5; 1.0; 2.0; 2.5; 3.0; 5.0kgf）
Measuring system magnification: 100x; 400x Language: Chinese/English Light source: 12V20W
Minimum detection unit: 0.25mm Power supply: AC220V50HZ/60Hz
Dwelling time: 0-99 seconds; Machine power 50W
The maximum height of the sample is 130mm. Dimensions: 486x337x657mm
Distance from the center of the indenter to the machine wall: 110mm Weight: 68kg
Coordinate test bench size: 100x100mm Coordinate test bench stroke: 25x25mm
Standard configuration:
Coordinate test bench: 1
Thin shaft test bench: 1
Thin plate test bench: 1
Flat-nose pliers: 1
Diamond pyramid indenter: 1
Standard Vickers hardness block: 2 pieces
Standard microhardness block: 1 piece
