main feature:

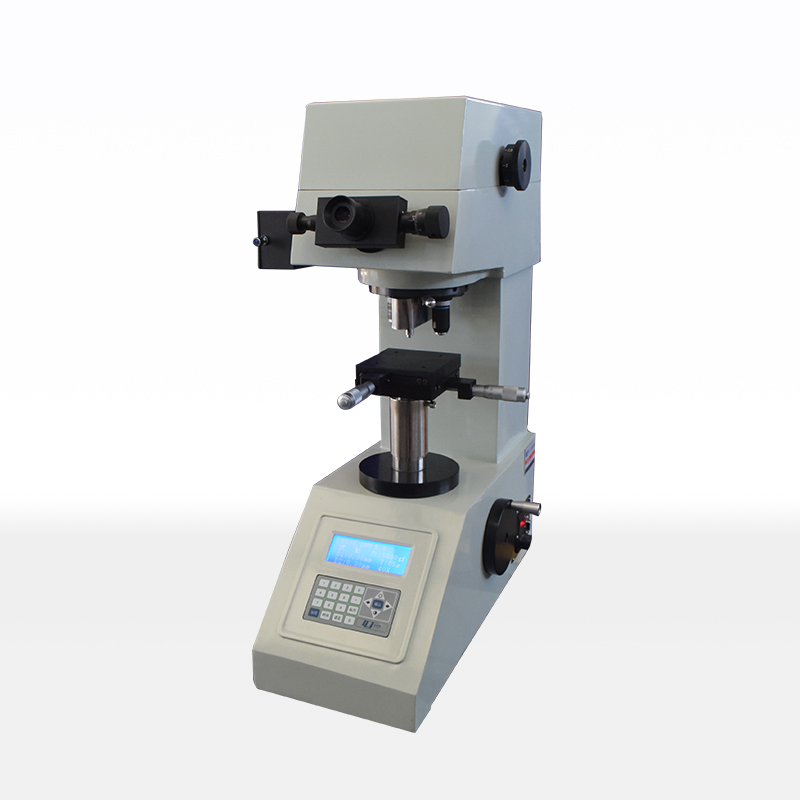

Weight directly loaded Vickers and micro-Vickers integrated machine, high test force accuracy; LCD hardness display, high-precision optical measurement system; optional CCD image processing system; test force covers microscopic and Vickers tests Requirements; the test process is automated, without human error; equipped with a precision coordinate test bench; the accuracy meets GB/T4340.2 ISO6507-2 and American ASTM E92 standards. Application range: Nitriding layer, ceramics, steel, non-ferrous metal; thin plate, metal sheet, electroplating layer, tiny test piece; depth measurement of carburized layer, decarburized layer and quench hardened layer.
Main technical specifications:
Measuring range: 5-3000HV Coordinate test bench division value 0.01mm
Test force: 1.961; 2.942; 4.93; 9.807; 19.61; 25.52; 29.42; 49.03
（0.2; 0.3; 0.5; 1.0; 2.0; 2.5; 3.0; 5.0kgf）
Measuring system magnification: 100x; 400x
Language: Chinese/English Light source: 12V20W
Minimum detection unit: 0.25mm
Power supply: AC220V50HZ/60Hz
Dwell time: 0-99 seconds;
Machine power 50W
The maximum allowable height of the sample is 130mm
Dimensions: 486x337x657mm
Distance from the center of the indenter to the machine wall: 110mm
Weight: 68kg
Coordinate test bench size: 100x100mm
Coordinate test bench stroke: 25x25mm
Standard configuration:
Coordinate test bench: 1
Thin shaft test bench: 1
Thin plate test bench: 1
Flat-nose pliers: 1
Diamond pyramid indenter: 1
Standard Vickers hardness block: 2 pieces
Standard microhardness block: 1 piece
