Measuring materials: hardness measurement of steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper-zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel, etc.

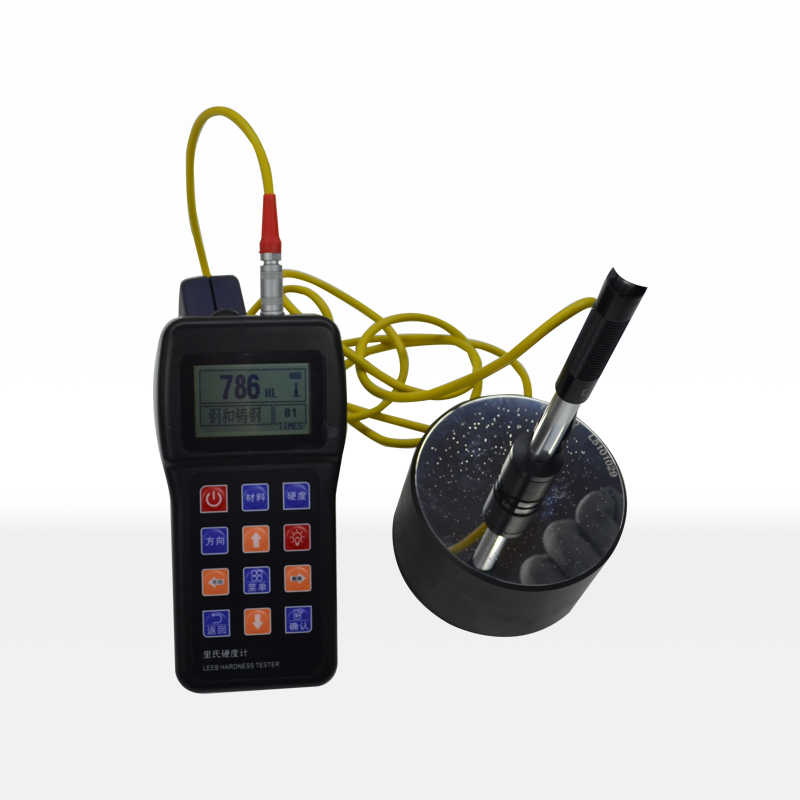

Unique features: equipped with high-precision D-type sensor, with support frame, bright large screen, no viewing angle.
The main purpose:
Machining industry, especially suitable for on-site hardness testing of large parts and non-detachable parts
Hardness of installed mechanical or permanently assembled components.
Mold cavity hardness.
Heavy workpiece hardness
Failure Analysis of Pressure Vessel, Turbine Generator Set and Its Equipment
Workpiece hardness with very narrow experimental space
Hardness of bearings and other parts
Material classification of metal material warehouse
Rapid detection of multiple measurement locations in large workpieces
Features:
Design basis standard: "Technical Conditions for Leeb Hardness Tester" JB/T 9378-2001; adopt D-type high-precision impact device;
Full Chinese display, menu operation.
It can be equipped with 7 different impact devices, no need to re-calibrate when replacing, and can automatically identify the type of impact device.
Supports measurement of various hardness systems.
It can store 373~2688 groups (32~1 impact times) single measurement value, average value, measurement date, impact direction, times, material, hardness system and other information.
The upper and lower limits of the hardness value can be set in advance, and the alarm will be given automatically when the value exceeds the limit, which is convenient for users to test in batches.
Indication software calibration function.
Runs on two AA batteries, convenient and efficient.
Ultra-low power consumption power management, with ultra-long working and standby time.
Technical Parameters:
Measuring range: (170-960) HLD, (19-651) HB, (13.5-101.7) HRB, (17.9-69.5) HRC,
(59.1-88)HRA, (80-1042)HV, (30.6~102.6)HS
Measuring direction: any (360°)
Applicable materials: steel and cast steel, alloy tool steel, stainless steel, gray cast iron, ductile iron, cast aluminum alloy, copper
Zinc alloy (brass), copper-tin alloy (bronze), pure copper, forged steel
Indication error and indication repeatability: D-type impact device ±6HLD (indication error) ±6HLD (indication repeatability)
Hardness scale: Shore (HS), Leeb (HL), Brinell (HB), Rockwell (HRC/HRB/HRA), Vickers (HV)
7 kinds
Upper and lower limit setting range: (170-960)HLD
Indication calibration: with indication software calibration function
Data storage: 373~2688 groups (impact times 32~1)
Continuous working time: about 360 hours (when the backlight is not turned on)
Standard configuration:
Hardness tester host: 1 set
Impact device: 1
Leeb hardness block: 1 piece
Nylon brush A: 1
Small support ring: 1
USB communication cable: 1 piece
Instruction manual: 1
Certificate of Conformity: 1 piece
Warranty card: 1 piece
Instrument box: 1
Select configuration:
Communication software CD
print cable
printer
