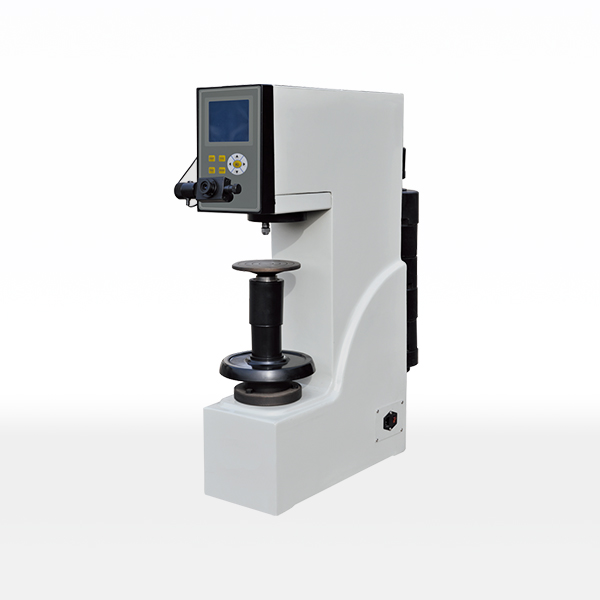

main feature:
Novel shape, solid structure, high test efficiency; weight adding force system, LCD display of test process; on-board measurement, can convert Rockwell, Vickers hardness value and tensile strength, random print hardness measurement results; large LCD liquid crystal display, Smart menu prompts, easy to operate; optional video system, CCD image processing system; precision in line with GB/T231.2 ISO6506-2 and American ASTM E10 standards.
Scope of application: Determination of Brinell hardness values of ferrous metals, non-ferrous metals and bearing alloy materials; wide application range, especially suitable for precision measurement of parallel planes. .
Main technical specifications:
Measuring range: 8-650HBW;
The maximum allowable height of the sample: 235mm;
Test force: 1838.8; 2451.8; 4903.5; 7355.3; 9807; 29421N
（187.5; 250; 500; 750; 1000; 3000kgf）
Distance from the center of the indenter to the machine wall: 120mm;
Optical magnification: 20x;
Minimum detection unit: 1um;
Power supply: AC220V50/60Hz;
Overall dimensions: 705x215x880mm;
Weight: about 220kg
Standard Configuration: Daping Test Bench:
1 Xiaoping test bench: 1
V-shaped test bench: 1
Tungsten carbide ball indenter: 1 piece each for φ10/φ5/φ2.5mm
Standard Brinell hardness block: 2 pieces
Optional configuration: Square workbench: 400X150X30mm Brinell video measurement system CCD Brinell image processing system
