main feature:

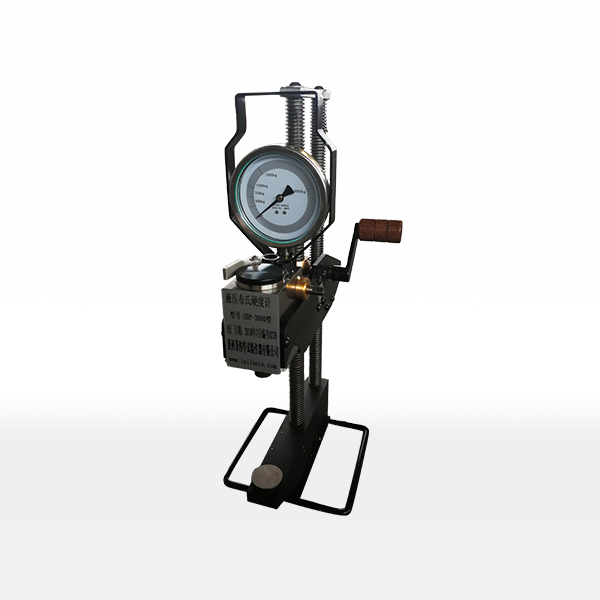

Hydraulic principle, manual operation, simple operation, easy to carry, can accurately test large and medium-sized workpieces on site, and the display accuracy is high. The test range is wide, and a variety of test forces can be used, and a variety of ball indenters can be selected. The test conditions and test accuracy conform to GB/T231.2, TSO6; 506-2 and American ASTM E10 standards.
Applications:
Testing of castings, forgings, steel as supplied, non-ferrous metals and heat-treated semi-finished steel workpieces.
Main technical specifications:
Measuring range | 15.9HBW-653HBW |
Test force | 3000Kg（可选500kg、750kg、1000kg、3000kg） |
pressure head | 10mm;硬质合金钢球（可选5mm硬质合金钢球） |
test height | 350mm |
deep throat | 100mm |
weight | 约13.8kg |
Hardness reading | 查表 |
power supply | AC220+5%,50~60Hz |
Dimensions (mm) | 550*236*750mm |
Host weight | 123kg |
Standard configuration
Standard configuration: Afterburner 1
Standard Brinell hardness block, 1 high and 1 low
Flat drill seat 1
V-shaped drill seat 1
Drill seat cover 1
20x reading microscope 1
Small hex wrench 1
Hardness Comparison Table 1
