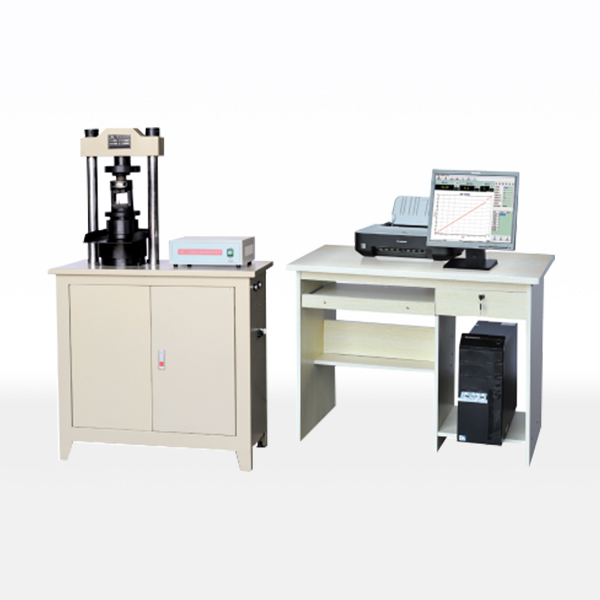

This testing machine is mainly used for the flexural strength test of concrete specimens and the compressive strength test of building materials such as cement, cement and red brick.
This machine adopts hydraulic loading, electronic force measurement, and has functions such as load digital display, loading rate display, maximum load hold, overload protection and power-off data hold.
Technical Parameters：
Maximum test force | 300kN(抗压) |
Force range | 4%~100%FS |
Relative error of test force indication | &±1% |
Hydraulic pump rated pressure | 25MPa |
Anti-breaking stick diameter | φ30 |
Center distance between upper and lower anti-bending sticks | 165mm |
Center distance between two upper anti-folding rollers | 150mm |
Center distance between two anti-folding rollers | 450mm |
Pressure plate size | Ф155mm |
Maximum distance between upper and lower platen | 230mm |
Piston Diameter and Maximum Stroke | φ130mmx80mm |
Motor Power | 三相0.75 kw |
Host Dimensions (LxWxH) | 850x620x1340mm |
net weight | 400Kg |
