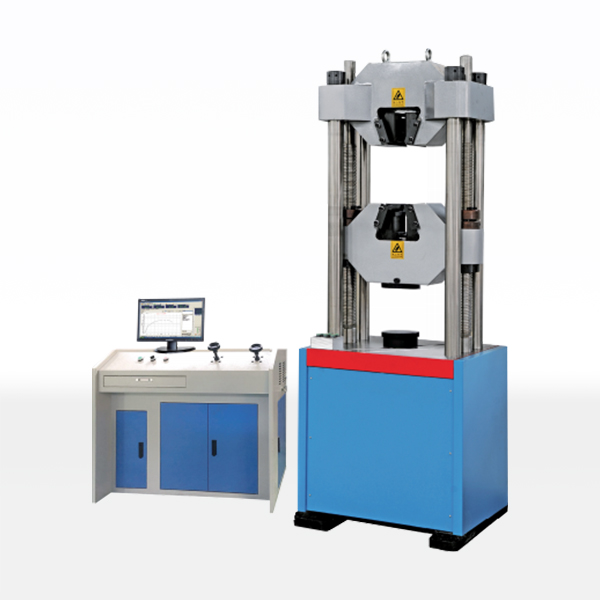

This machine is mainly used for mechanical performance tests such as tension, compression, bending and shearing of metal and non-metal materials. This machine is equipped with a computer, printer, electronic extensometer, photoelectric encoder and general test software, which can accurately measure metal materials. Mechanical properties such as tensile strength, yield strength, specified non-proportional elongation strength, elongation, elastic modulus, etc. The test results can be queried and printed (force-displacement, force-deformation, stress-displacement, stress-deformation, force-time, deformation-time) six curves and related test data, with software self-test function, self-diagnosing faults, See software description for details. It is an ideal testing equipment for industrial and mining enterprises, scientific research units, colleges and universities, engineering quality supervision stations and other departments.
Technical Parameters：
project | WEW-300B/D | WEW-600B/D | WEW-1000B/D |
Maximum test force | 300kN | 600kN | 1000kN |
Range |
| The whole process is not divided into files, which is equivalent to 3 files |
|
Force range |
| 2%-100%FS |
|
Relative error of test force indication |
| 城土1% |
|
Test force resolution |
| 0.01kN |
|
Deformation accuracy |
| ±0.5%FS |
|
Stretch space | 550mm | 650mm | 750mm |
compressed space | 380mm | 380mm | 460mm |
Clamping method | automatic clamping | automatic clamping | automatic clamping |
Round specimen clamping diameter | 中6~26mm | Ф13~40mm | 中13~40mm |
Flat specimen clamping thickness |
| 0-15mm |
|
Flat specimen maximum clamping width | 70mm | 75mm | 75mm |
Column structure (number of columns) |
| 2 |
|
Shear specimen diameter |
| 10mm |
|
Upper and lower platen size |
| φ160mm(另选204x204mm) |
|
The maximum distance between the fulcrums of the bend |
| 450mm |
|
Stretch space distance between two pillars | 450mm | 450mm | 550mm |
Oil pump motor power |
| 1.1kW |
|
Motor power for crossbeam moving up and down |
| 0.75kW |
|
net weight | 1900Kg | 2100Kg | 2700Kg |
