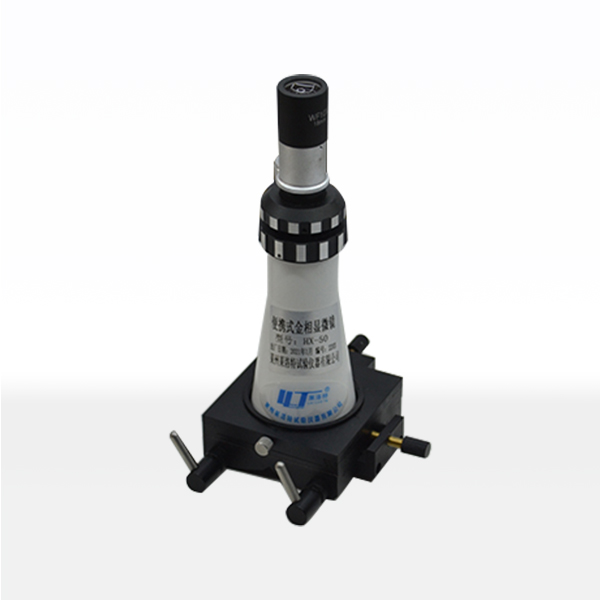

HX-50 portable metallurgical microscope has its own vertical light source, so it can be conveniently used on site to identify the structure of various metals and alloys when it is impossible to make samples. It is suitable for the metallographic inspection of various large workpieces on site, and the microscope for failure analysis. It does not need to cut and sample, but directly grinds and polishes the workpiece to ensure the integrity of the workpiece. Portable metallographic microscopes are suitable for aviation manufacturing, machinery manufacturing, vehicles Manufacturing, manufacturing and inspection of boilers and pressure vessels, petrochemical, railway, shipbuilding, power plants, power stations, equipment installation, large molds, safety testing, quality supervision, physical and chemical laboratories and other industries. It can also be widely used in factories and laboratories for the identification of casting quality, raw material inspection, or research and analysis of the metallographic structure of materials after processing.
Magnetic base:
The microscope base has a magnetic suction seat, which is directly adsorbed on the workpiece to observe the on-site metallographic inspection of the tissue. The gear-type XY-axis moving platform ensures that the horizontal direction does not move down by itself.
Lighting system:
Using 6V3W LED lighting, rechargeable lithium battery.
HX-50 Portable Metallographic Microscope Technical Parameters:
Optical system: finite distance chromatic aberration correction optical system ·
Observation tube: monocular observation tube. ·
Eyepiece: wide field of view WF10X (Φ18mm) ·
Large field of view WF10X (Φ18mm) with cross differentiation ruler.
Long distance plan achromatic objective lens: PL L 10X/0.25 WD8.8mm .
PL L 40X/0.6 WD3.73mm .
PL L 20X/0.4 WD8.6mm.
PL L 50X/0.7 WD2.02mm.
Lighting system: 6V3W LED lighting, rechargeable lithium battery.
Microscope base: fast and non-magnetic base.
X-Y magnetic base .
Supporting software: metallographic analysis software (2016 version, 2018 version).
Camera device: Metallographic digital camera device (5 million, 6.3 million, 12 million, 16 million, etc.) 0.5X, 1X camera socket
Micrometer: high-precision micrometer (grid value 0.01mm)
Grinding accessories: angle grinder, sandpaper, wool felt, diamond polishing agent, etc.
