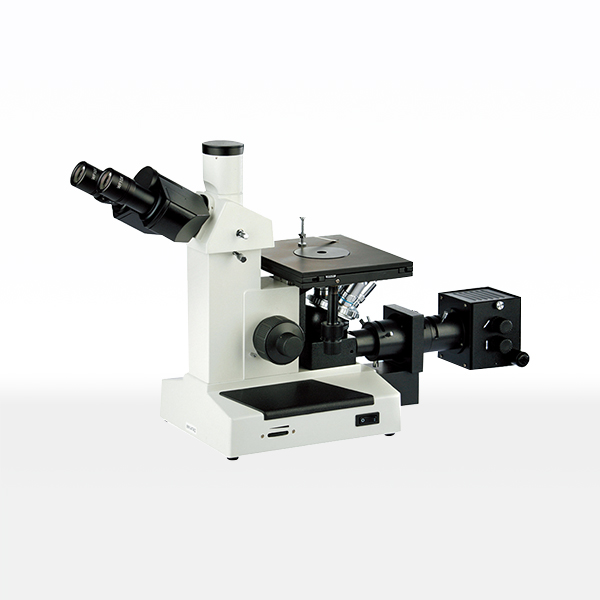

4XC series inverted metallographic microscopes are mainly used to identify and analyze the internal structure of metals. This instrument is an important instrument for the study of metallographic metallography. This series of inverted metallographic microscopes can be used for casting, smelting, heat treatment research, raw material inspection or metallographic analysis after material processing, etc. 4XC inverted microscope base has a large support area and a solid body, which makes the center of gravity of the instrument low and stable and reliable. The eyepiece and the support surface are inclined at 45 degrees, making observation more comfortable. This series of inverted metallographic microscopes is an ideal instrument for colleges and universities to carry out teaching, laboratory testing, and factory quality appraisal.
4XC series inverted metallurgical microscopes have two optical observation modes: bright field and polarized light. The inverted metallographic microscope uses professional metallographic objective lenses and flat-field eyepieces, with good imaging quality, high resolution and comfortable observation. Equipped with JX2015 professional metallographic analysis software, the grade evaluation of metallographic structure can be carried out on the computer and the corresponding metallographic report can be obtained. The standard configuration of the microscope is a trinocular lens tube, which can be equipped with a digital camera or a digital camera. It can not only perform microscopic observation on the eyepiece, but also observe real-time dynamic images on the computer display screen, and can edit, save, and edit the required pictures. Analyze and print.
Optical system: Infinity chromatic aberration correction system
Optical magnification: 50-500 times
Eyepiece: high eye point wide field of view plan eyepiece PL10X/18mm
Objective lens: Long working distance plan achromatic professional metallographic objective lens 5X, 10X, 20X, 50X
Lighting power supply: adjustable 6V30W halogen lamp (optional 5VLED lamp), aperture diaphragm, field diaphragm
Observation head: trinocular observation head (digital photography and eye observation can be carried out simultaneously)
Objective lens converter: four-hole converter (optional five-hole converter)
Stage: three-layer mechanical mobile platform, area 180mmX155mm, stroke: 75mmx4
Focus adjustment: 38 mm stroke per revolution for coarse motion; 2um fine adjustment accuracy; with elastic adjustment mechanism, low hand
optional accessories
1. Eyepiece PL15X/13mm, PL20X/10mm, PL10X/18mm measuring eyepiece
2. Plan achromatic metallographic objective lens LMPL100X/0.80 WD2.0mm
3. Mechanical metallographic sample polishing machine; metallographic sample grinding and polishing machine
4. Digital camera, digital camera interface and digital camera
5. Metallographic polishing consumables
6. Dedicated J-2015 metallographic image analysis software
7. Five-hole converter
