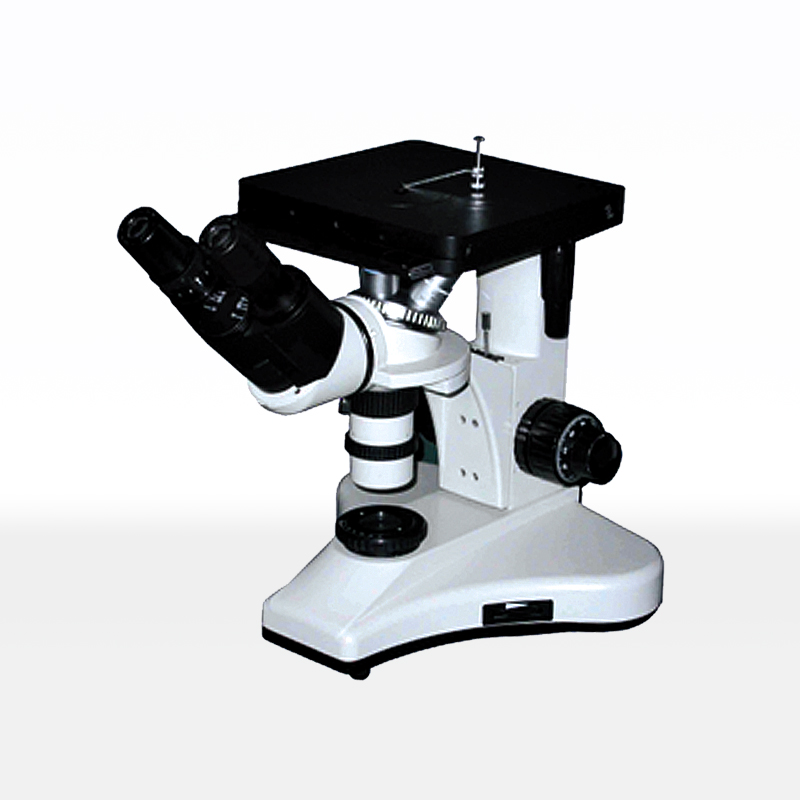

The 4XC binocular metallographic microscope has two optical observation methods: bright field and polarized light. The inverted metallographic microscope uses professional metallographic objective lenses and flat-field eyepieces, with good imaging quality, high resolution and comfortable observation. Equipped with JX2015 professional metallographic analysis software, the grade evaluation of metallographic structure can be carried out on the computer and the corresponding metallographic report can be obtained. The standard configuration of the microscope is a trinocular lens tube, which can be equipped with a digital camera or a digital camera. It can not only perform microscopic observation on the eyepiece, but also observe real-time dynamic images on the computer display screen, and can edit, save, and edit the required pictures. Analyze and print.
Optical System Infinity Chromatic Aberration Correction System
Optical magnification: 50 - 500 times
Eyepiece: High eye point, large field of view, flat field eyepiece P L 1 0 X / 1 8 mm
Objective lens: long working distance plan achromatic professional metallographic objective lens 5X, 10X, 20X, 50X,
Illumination power supply adjustable 6 V 30 W halogen lamp (optional 5 W LED lamp), aperture diaphragm, field diaphragm center adjustable
Observation head: trinocular observation head (digital photography and eye observation can be carried out simultaneously)
Objective lens changer: four-hole changer (optional five-hole changer)
Object stage: three-layer mechanical mobile platform, area 180 mm X 155 mm, stroke: 75 mm X 40 mm;
Focal length adjustment Coarse motion 38 mm stroke per revolution; fine adjustment accuracy 2 μm; with loosening and tightening adjustment mechanism, coaxial with low hand position
